CSD87330Q3D Texas Instruments

CSD87330Q3D

Manufacturer:

Texas Instruments

Mfr.Part #:

CSD87330Q3D

Datasheet:

Description:

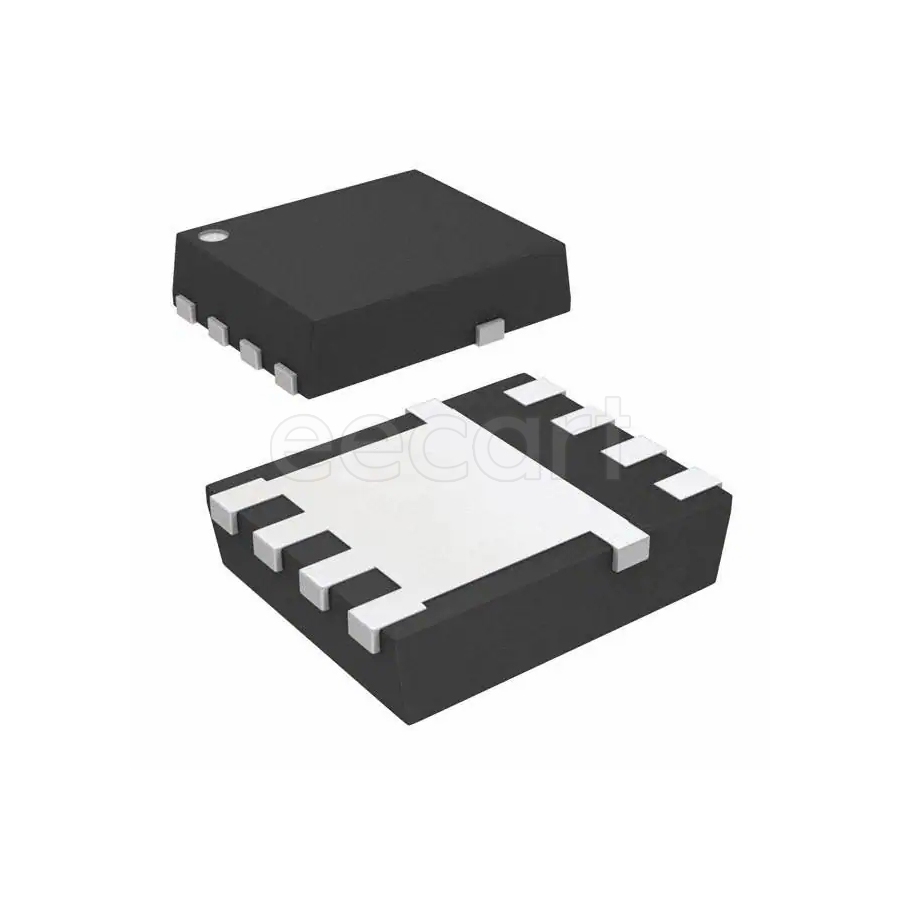

MOSFETs SON-8 SMD/SMT N-Channel number of channels:2 6 W 30 V Continuous Drain Current (ID):20 A 4.8 nC, 9.6 nC

Parameter	Value
Length	3.3 mm
Width	3.3 mm
Max Operating Temperature	150 °C
Min Operating Temperature	-55 °C
Number of Pins	8
Height	1.5 mm
Packaging	Reel
Thickness	1.5 mm
Radiation Hardening	No
RoHS	Compliant
REACH SVHC	No SVHC
Contact Plating	Gold
Output Current	1.4 A
Output Type	Adjustable
Lifecycle Status	Production (Last Updated: 1 day ago)
Max Power Dissipation	6 W
Power Dissipation	6 W
Max Output Current	15 A
Threshold Voltage	1 V
Number of Channels	2
Input capacitance	900 pF
Continuous Drain Current (ID)	20 A
Drain to Source Voltage (Vdss)	30 V
FET Type(Transistor Polarity)	N-Channel
Turn-On Delay Time	4.5 ns
Turn-Off Delay Time	9.1 ns
Element Configuration	Dual
Max Input Voltage	27 V
Number of Outputs	1
Fall Time	1.6 ns
Rise Time	7.5 ns
Efficiency	90 %
Gate Charge	4.8 nC, 9.6 nC
Max Junction Temperature (Tj)	125 °C
Max Output Voltage	1.2 V
Gate to Source Voltage (Vgs)	-8 V, 10 V
Drain to Source Breakdown Voltage (Vds)	30 V
Schedule B	8541290080
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Gate to Source Threshold Voltage	1 V, 750 mV
